Product Details:
|
| Material: | Polyvinyl Chloride (PVC) | Trademark: | Kunshang |
|---|---|---|---|
| Lifespan: | 20-30 Years Under Normal Conditions | OEM: | Yes |
| Product Name: | UPVC Roof Sheet | Customized: | Customized Thickness And Color |
| Warranty: | 15 Years | Surface: | UPVC,ASA |
| Model No: | T1130 T1360 | Impact Resistance: | High Impact Resistance |
| Color: | White,grey,green,blue,red,yellow,brown | Thickness: | 1.5mm To 3mm |
15 years warranty ASA coated upvc roof sheet roofing sheet description:
| Tpye | ASA UPVC CORRUGATED ROOF SHEET |
| thickness | 1.5mm-3.0mm |
| Total Width | 1130mm,1360mm |
| Effective Width | 1050mm, 1260mm |
| Length | The max length in 20ft container is 5.8m. |
| The max length in 40ft container is 11.8m. | |
| Packing | Full container:Main tiles are nude packing. The accessories are packed with packing paper. |
| LCL container:By pallets or by wooden box or by buyer's request,based on the length of tile. |
15 years warranty ASA coated upvc roof sheet roofing sheet advantages:
1.save cost;
2. Light weight: 3Kg-6.0kg/square meter;
3. Water resistance: 100%;
4. Fire resistance: Self-extinguish off fire;
5. Anti corrosion;
6. Impact resistance and low temperature resistance;
7. Sound and heat insulation;
8. Small Thermal expansivity;
9. Environmental protection and energy conservation;
10. Easy to install

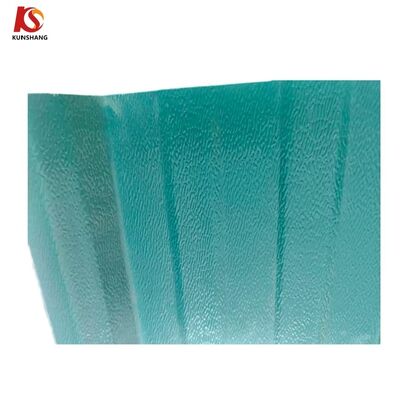

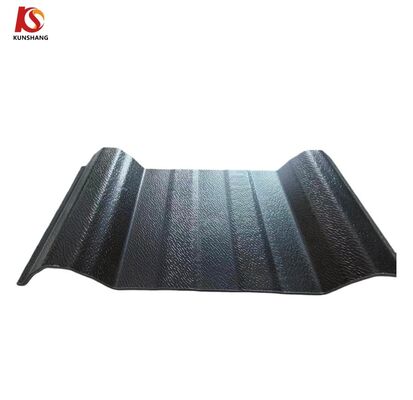

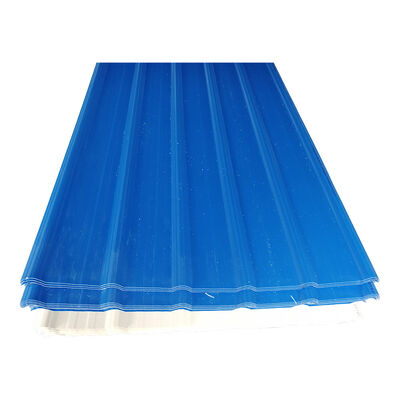

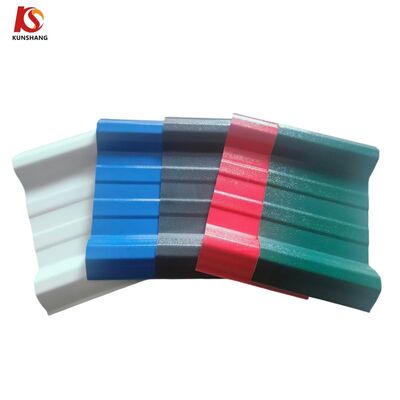

ASA UPVC ROOF SHEET PICTURES:
![]()
![]()
![]()
PACKING AND SHIPPING:
1.Normally, our FOB price base on 1 container as the roof tile is nude packing.
<img alt="" src="
WORKSHOP AND PRODUCTION LINES:
![]()
![]()
![]()
Why choose us:
FAQ:
1. What machine do you use to cut ?
Using portable cutting machine.
2. What machine do you use to install the screws?
Portable electric drill.
3. How to install ?
Overlap, on the vertical direction overlap 150-200mm, on the horizontal direction overlap one wave.
4. What is the temerature limited of the environment that your roof can be used?
Temperature range: From Minus 35 degree to 72 degree
5. What color can you produce?
White, blue, brick red, green, grey etc, same as our color swatch. If you need special color, please provide sample.
6. Does you charge for the samples?
According to our company policy, we just sent free samples to customers while the customers pay for the freight fees.
7. Can you produce according to customers'design?
Sure, we are professional manufacturer,OEM are welcome . But the beginning you need pay the mould fees,after certain quantity, the open mould fees will be returned as product.
