EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile

I'm Online Chat Now

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile

Description
Material: Raw PVC, Anti-UV Agent,Other Chemical Materials Type: S Tiles
Shape: Spanish Style Size: 1050mm*11826mm, 1050mm*5694mm
Color: Brick Red,Blue,Grey,Green,Black,Red,Brown Customized: Customized
Thickness: 2.0mm,2.3mm,2.5mm,3.0mm Width: 1050mm
Surface: ASA,PVC Length: Customized
EXW MOQ: 200 Sqm H.S Code: 39259000
Color Lasting: 15 Years Lead Time: 7-10 Days After Prepayment
Life Time: 30 Years Loading Quantity: 4500-6000sqm Per Container
Delivery Time: 7-10 Days After Received Deposit Usage: Residence,Warehouse,Villa,Office,Hospital
Design: Sppanish Tile Fire Protection: B1
Transport Package: Nude Packing, By Wooden Box Or By Pallet Specification: 1050mm, 880mm, 720mm
Trademark: KUNSHANG Origin: China
HS Code: 39259000 Supply Ability: 200000sqm
Package Size: 35.00cm * 30.00cm * 15.00cm Package Gross Weight: 2.000kg

Product Description

Waterproof corrugated Spanish Resin PVC Roofing Tile description:

Tpye Durable Sythentic Resin Spanish Style pvc Roofing Tiles
thickness 2.0mm-3.0mm
Total Width  1050mm, 880mm, 720mm
Effective Width 960mm, 790mm, 630mm
Length The max length in 20ft container is 5.694m.
The max length in 40ft container is 11.826m.
Packaing Full container:Main tiles are nude packing. The accessories are packed with packing paper.
LCL container:By pallets or by wooden box or by buyer's request,based on the length of tile.

Waterproof corrugated Spanish Resin PVC Roofing Tile advantages:

1.save cost;

2. Loading bearing: It can load 150 kg per square meter evenly;

3. Light weight: 5-6.0kg/square meter;

4. Water resistance: 100%;

5. Fire resistance: Self-extinguish off fire;

6. Anti corrosion;

7. Impact resistance and low temperature resistance;

8. Sound and heat insulation;

9. Small Thermal expansivity;

10. Environmental protection and energy conservation;

11. Easy to install

Fireproof Spanish plastic PVC Roofing Sheet/Tiles Technical data:

Item Content Result  Standard
Environment Pollution or environment friendly No asbestos and Environment friendly Recycling material GB6566-2001, A standard good for Environment
Heat distortion temperature Under 70.0°C No change GB/T1634-2004
Vicat softening temperature  Under 75.2°C No Softening GB/T1633-2000
Hard to burn B1 Grade Oxygen index: 32.4 GB/T2406-1993
Vertical Burning  FV-0 FV-0 GB/T2408-1996
Horizontal Burning  FH-1 FH-1 GB/T2408-1996
Impact Resistance No crack 0/10 GB/T8814-2004
Density 1.75-1.95 1.778 GB/T1033-1986
Corrosion-resistant  Acid (HCL,H2SO4,HNO3)5% No change QB/T3801-1999
Alkaline(NaOH)5%  No change QB/T3801-1999

Detailed Photos
EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 0

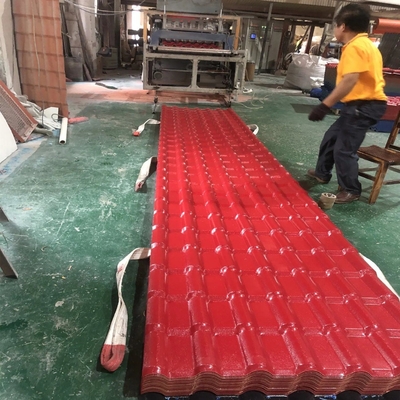

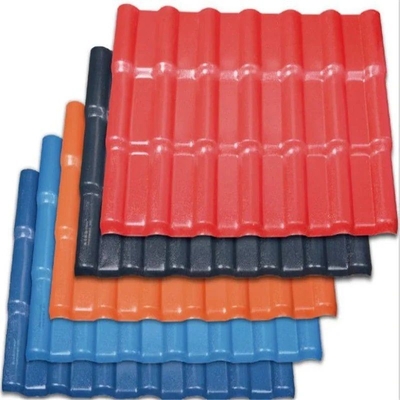

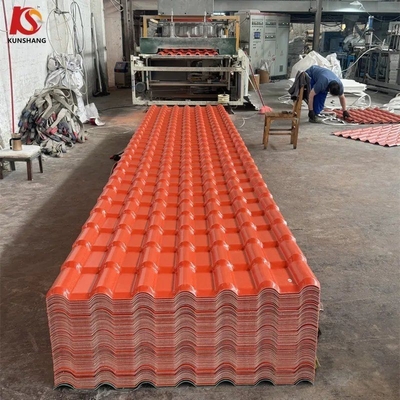

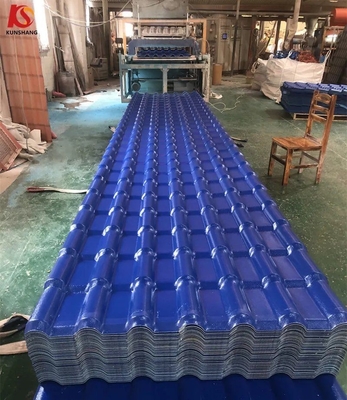

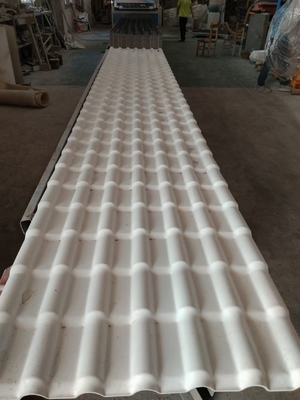

Spanish PVC roofing/roof tile detailed pictures:

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 1

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 2

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 3

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 4


EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 5

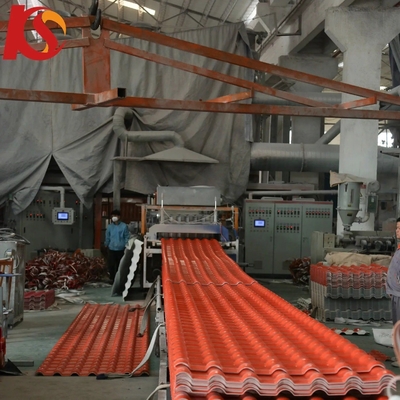

Waterproof corrugated Spanish Resin PVC Roofing Tile PVC Producing Line: :

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 6

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 7
Installation Instructions



EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 8

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 9
Products Cases

4 Layer Spanish PVC Roof tile projects:4PVC:

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 10
Packaging & Shipping
1.Normally, our FOB price base on 1 container as the roof tile is nude packing.


Whatever 20ft container or 40ft container, both of them are limited 28tons.


1> 20ft container, because of volum limited, the 20ft container could load around 27-28 tons with 5.8m length with full container.


2> 40ft container, because of weight limited, the 40ft container could load around 27-28 tons with 11.8m length, but the volum is half container.


2.If you need the order quantity less than one container,we can pack and ship by pallet or wooden box,based the different length.

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 11

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 12

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 13

EXW MOQ 200 Sqm Spanish PVC Roof Tile for PVC Teja Espanola Building Material Synthetic Resin Roofing Tile 14
Why choose us:
  • Any inquires will be replied within 24 hours .
  • We are professional supplier and exported this kind of products more than 5 years.
  • Any your idea on the packing we can help you to design and put into production.
  • High quality , reasonable and competitive price , fast lead time .
  • All products will have been strictly quality checked in house before packing  .
  • All products will be well packed before shipping.Sample order prepared,about 7-10 days for delivery productions.
FAQ:

1.  What machine do you use to cut ?
Using portable cutting machine.
2.  What machine do you use to install the screws?
Portable electric drill.
3.  How to install ?
Overlap, on the vertical direction overlap 150-200mm, on the horizontal direction overlap one wave.
4.  What is the temerature limited of the environment that your roof can be used?
Temperature range: From Minus 35 degree to 72 degree
5.  What color can you produce?
White, blue, brick red, green, grey etc, same as our color swatch. If you need special color, please provide sample.
6.  Does you charge for the samples?
According to our company policy, we just sent free samples to customers while the customers pay for the freight fees.
7.  Can you produce according to customers'design?
Sure, we are professional manufacturer,OEM are welcome . But the beginning you need pay the mould fees,after certain quantity, the open mould fees will be returned as product.
