Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet

I'm Online Chat Now

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet
Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet

Large Image :  Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet

Product Details:
Place of Origin: China
Brand Name: kunshang
Certification: BV SGS ISO
Model Number: 1040mm-1050mm
Payment & Shipping Terms:
Minimum Order Quantity: 200 Sqm
Price: USD3.8-USD4.8/m2
Packaging Details: in bulk,pallets or by your requirement.
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000m2/day

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet

Description
Material: PVC,synthetic Resin,ASA+PVC OEM: Yes
Thickness: 2.3-3.0mm Color: Yellow,grey,blue,orange,red,golden Etc.
Life: 30 Years Color Last: 10 Years
Heat Resistance: -40 ~ + 70 Celsius Fireproof: B1
Lead Time: 7-10 DAYS Weight/M2: 4.4-5.8/m2
Warranty: 20 Years Type: Plain Roof Tiles,Bent Tiles,Double Roman Tiles,Ridge Tiles
Application: Villas,townhouse,farm Markets,flat And Slope Building,shed

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet advantages:

1.save cost

2. Loading bearing: It can load 150 kg per square meter evenly;

3. Light weight: 5-6.0kg/square meter;

4. Water resistance: 100%;

5. Fire resistance: Self-extinguish off fire;

6. Anti corrosion;

7. Impact resistance and low temperature resistance;

8. Sound and heat insulation;

9. Small Thermal expansivity;

10. Environmental protection and energy conservation;

11. Easy to install

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet description:

Width 1040mm-1050mm
Weight 4.4-5.8±0.1kg/square meter
Thickness 2.3-3.0mm
Length customized
Minimum slope 12°
purlin Space

700mm for thickness of 2.0mm

800mm for thickness of 2.5 or 3.0mm

Overlap one corrugated
popular color Terra Cotta, Red, Light red, Green, Blue, Grey, Black, Orange etc.
Application Villa,supermarket,resistance,office building,hospital,school,park,shed

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet 0

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet technical data:

Item Content Result Standard
Environment Pollution or environment friendly No asbestos and Environment friendly Recycling material GB6566-2001, A standard good for Environment
Heat distortion temperature Under 70.0°C No change GB/T1634-2004
Vicat softening temperature Under 75.2°C No Softening GB/T1633-2000
Hard to burn B1 Grade Oxygen index: 32.4 GB/T2406-1993
Vertical Burning FV-0 FV-0 GB/T2408-1996
horizontal Burning FH-1 FH-1 GB/T2408-1996
Impact Resistance no crack 0/10 GB/T8814-2004
Density 1.75-1.95 1.778 GB/T1033-1986
Corrosion-resistant Acid (HCL,H2SO4,HNO3)5% No change QB/T3801-1999
Alkaline(NaOH)5% No change QB/T3801-1999


Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet pictures:

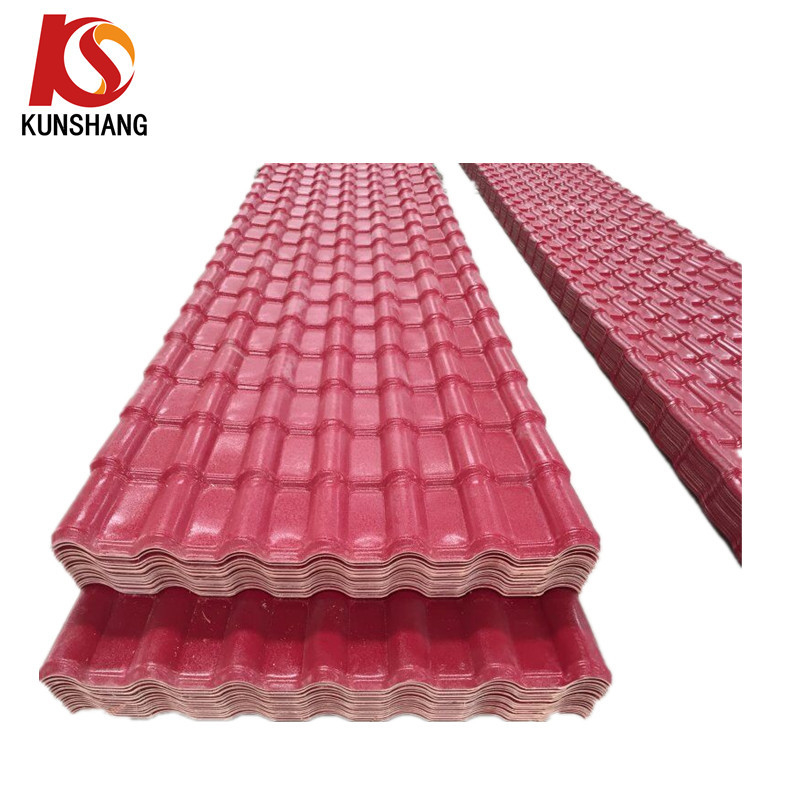

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet 1

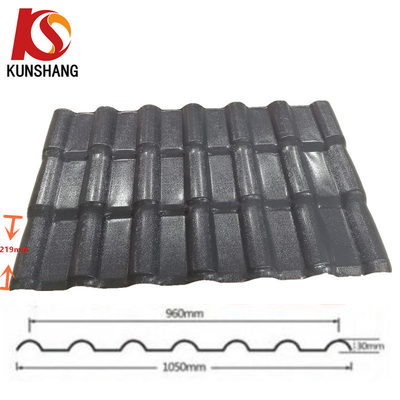

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet 2

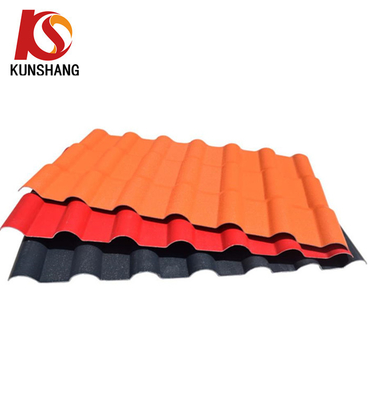

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet  Main color:(customized color is available.)

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet 3

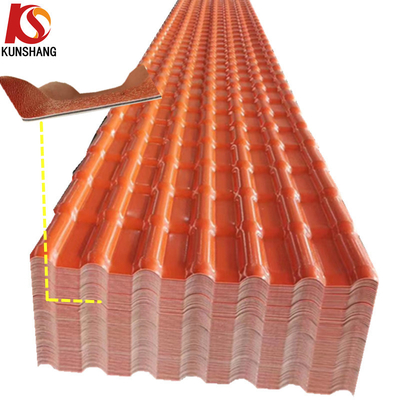

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet Producing Line:

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet 4

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet Projects:

Anti-age Synthetic resin PVC Roof Tile plastic roof tiles sheet 5
Why choose us:

  • Any inquires will be replied within 24 hours .
  • We are professional supplier and imported this kind of products more than 5 years.
  • Any your idea on the packing we can help you to design and put into production.
  • High quality , reasonable and competitive price , fast lead time .
  • All products will have been strictly quality checked in house before packing .
  • All products will be well packed before shipping.Sample order prepared,about 7-10 days for delivery productions.

FAQ:
1. What machine do you use to cut ?
Using portable cutting machine.
2. What machine do you use to install the screws?
Portable electric drill.
3. How to install for Grey Spanish synthetic resin pvc roofing/roof tile/tejas?
Overlap, on the vertical direction overlap 150-200mm, on the horizontal direction overlap one wave.
4. What is the temerature limited of the environment that your roof can be used?
Temperature range: From Minus 35 degree to 72 degree
5. What color can you produce?
White, blue, brick red, green, grey etc, same as our color swatch. If you need special color, please provide sample.
6. Does you charge for the samples?
According to our company policy, we just sent free samples to customers while the customers pay for the freight fees.
7. Can you produce according to customers'design?
Sure, we are professional manufacturer,OEM are welcome . But the beginning you need pay the mould fees,after certain quantity, the open mould fees will be returned as product.
